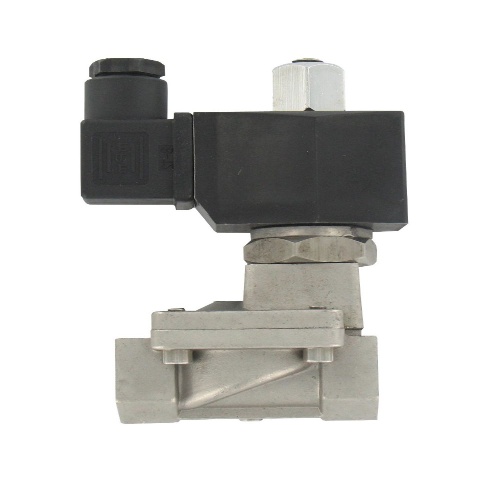

Dwyer SSV-S3F4 is a stainless steel solenoid valve designed for use with compatible gases and liquids. It has a temperature range of 32 to 149°F (0 to 65°C) and can handle a maximum pressure of 174 psi (12 bar). The valve operates on standard 110 VAC power, with optional 220 VAC or 24 VDC available. It has a NEMA 13 (IP54) enclosure rating and uses a DIN connection for electrical connections. The valve is made with a nylon body and features a female NPT process connection. It can be mounted in any position, with the solenoid best positioned vertically above the valve. The wetted materials include a 316 SS body, a 304 SS spring, and a fluoroelastomer seal. The line size options range from 1/8 to 2" NPT. The valve is a normally open (NO) type of operation. For full power consumption details, please refer to the catalog.
