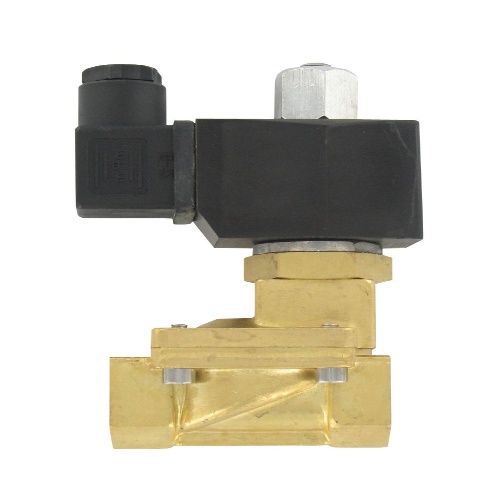

Dwyer SSV-B7N2 is a brass solenoid valve designed for 2-way guided no processes with a temperature range of 176°F (80°C) for process and 32 to 149°F (0 to 65°C) for ambient. It operates on a standard 110 VAC power requirement, with optional 220 VAC and 24 VDC available. The valve has an enclosure rating of NEMA 13 (IP54) and features a DIN electrical connection. It is suitable for use with compatible gases and liquids and has a pressure limit of 174 psi (12 bar). The valve has a female NPT process connection and is made of nylon material. It can be mounted in any position, with vertical positioning above the solenoid being ideal. The wetted materials include a brass body, 304 SS spring, and NBR seal. The line size ranges from 1/8 to 2" NPT, and the maximum operating pressure varies depending on the size of the valve. The type of operation is normally open (NO).
