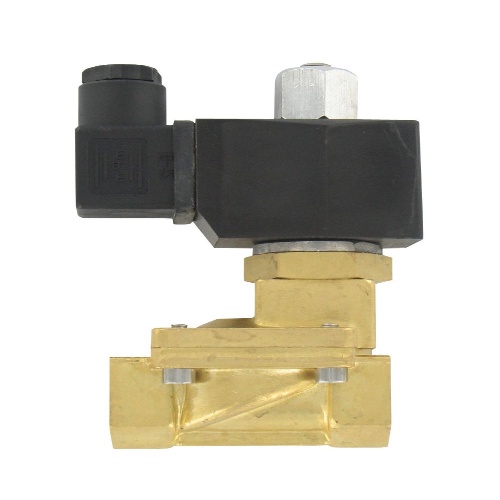

Dwyer SSV-B6N1 is a brass solenoid valve with a 2-way guided nozzle. It can withstand a temperature range of 32 to 149°F (0 to 65°C) in ambient conditions and up to 176°F (80°C) in the process. It has a power requirement of 110 VAC, with optional 220 VAC and 24 VDC. The valve is suitable for use with compatible gases and liquids. It has a NEMA 13 (IP54) enclosure rating and a DIN electrical connection. The wetted materials include a brass body, a 304 stainless steel spring, and an NBR seal. The valve has a pressure limit of 174 psi (12 bar) and a process connection of female NPT. The line size ranges from 1/8 to 2" NPT. The maximum operating pressure varies based on size, with 0 psi (0 bar) to 87 psi (6 bar) for 1/8 to 1/4" sizes and 7.3 psi (0.5 bar) to 116 psi (8 bar) for 3/8 to 2" sizes. The valve operates on a normally open mode and can be mounted in any position, with the best performance when the solenoid is vertically above the valve. The power consumption details can be found on the catalog page. The valve is made of nylon material.
