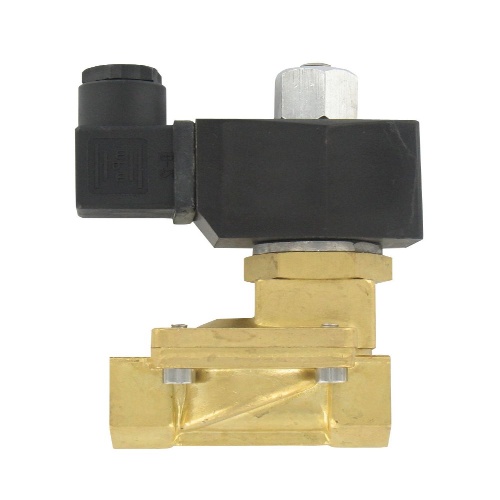

Dwyer SSV-B5N4 is a brass solenoid valve with a 2-way guided no component. It can handle process temperatures up to 176°F and ambient temperatures ranging from 32 to 149°F. The valve has a standard power requirement of 110 VAC, with optional 220 VAC or 24 VDC options available. It has a NEMA 13 (IP54) enclosure rating and features a DIN connection for electrical connections. The valve is suitable for use with compatible gases and liquids. It has a maximum pressure limit of 174 psi and is equipped with a female NPT process connection. Its wetted materials include a brass body, 304 stainless steel spring, and NBR seal. It can be mounted in any position, with the best performance achieved when the solenoid is positioned vertically above the valve. The valve is made of nylon material and is available in line sizes ranging from 1/8 to 2" NPT. Its maximum operating pressure varies depending on the line size: 1/8 to 1/4" has a range of 0 to 87 psi, while 3/8 to 2" has a range of 7.3 psi to 116 psi. The valve operates as a normally open (NO) type.
