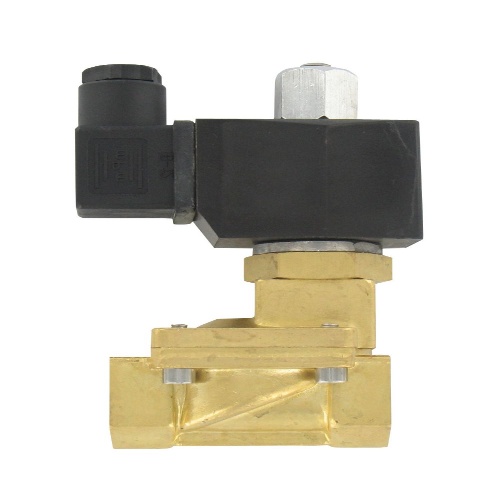

Dwyer SSV-B4N4 Brass Solenoid Valves – 2-Way Guided No
Normally In Stock
Code: 569654
Dwyer SSV-B4N4 - 2-way brass solenoid valve, 1/2", 0.5-8 bar, nbr seal, 24 VDC
Condition: New
Usually ships Same Day or Next Day$164.40
Sale Price
$137.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SSV-B4N4 is a brass solenoid valve designed for 2-way guided no applications. It can handle temperatures up to 176°F (80°C) in process and 32 to 149°F (0 to 65°C) in ambient conditions. It operates on a standard 110 VAC power supply, with optional 220 VAC or 24 VDC. The valve has a NEMA 13 (IP54) enclosure rating and uses DIN electrical connections. It is suitable for use with compatible gases and liquids. The valve has a maximum operating pressure of 174 psi (12 bar) and a pressure limit ranging from 0 psi (0 bar) to 116 psi (8 bar), depending on the line size. The valve is operated in a normally open (NO) configuration.
Specifications
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) Supply Voltage
110 VAC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
220 VAC
Component
Solenoid Valve
(Instrument-Sensor) Temperature Range
Process: 176°F/80°C
(Instrument-Sensor) Temperature Range
Ambient: 32 - 149°F/0 - 65°C
Sub Component
Brass Solenoid Valves – 2-Way Guided No
Manufacturer
Dwyer Instruments
Features
Can be oriented in any position
Compact design
Field replaceable coils
