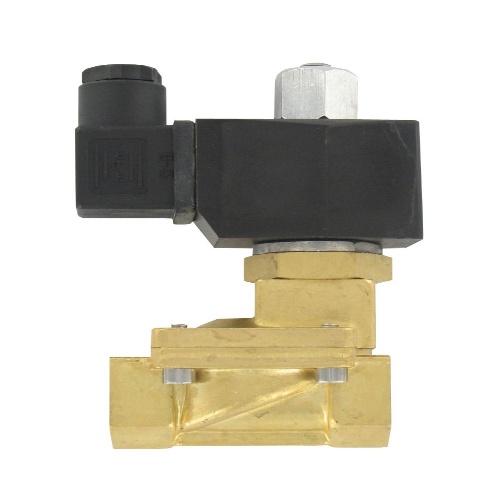

Dwyer SSV-B4N1 Brass Solenoid Valves – 2-Way Guided No
Normally In Stock
Code: 569651
Dwyer SSV-B4N1 - 2-way brass solenoid valve, 1/2", 0.5-8 bar, nbr seal, 110 VAC
Condition: New
Usually ships Same Day or Next Day$180.20
Sale Price
$150.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SSV-B4N1 is a brass solenoid valve designed for 2-way guided no process applications. It can handle temperatures up to 176°F (80°C) and has an ambient temperature range of 32 to 149°F (0 to 65°C). The valve operates on a standard 110 VAC power requirement, with optional 220 VAC or 24 VDC configurations available. It has a NEMA 13 (IP54) enclosure rating and features a DIN electrical connection. The valve is compatible with gases and liquids and has a maximum pressure limit of 174 psi (12 bar). It has a female NPT process connection and is constructed with a brass body, 304 SS spring, and NBR seal. The valve can be mounted in any position, but it is best to have the solenoid vertically above the valve. The wetted material is nylon and it is available in line sizes ranging from 1/8 to 2" NPT. The maximum operating pressure varies depending on the size of the valve, with 1/8 to 1/4" valves having a range of 0 psi (0 bar) to 87 psi (6 bar), and 3/8 to 2" valves having a range of 7.3 psi (0.5 bar) to 116 psi (8 bar). The valve operates as a normally open (NO) configuration.
Specifications
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) Supply Voltage
110 VAC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
220 VAC
Component
Solenoid Valve
(Instrument-Sensor) Temperature Range
Process: 176°F/80°C
(Instrument-Sensor) Temperature Range
Ambient: 32 - 149°F/0 - 65°C
Sub Component
Brass Solenoid Valves – 2-Way Guided No
Manufacturer
Dwyer Instruments
Features
Can be oriented in any position
Compact design
Field replaceable coils
