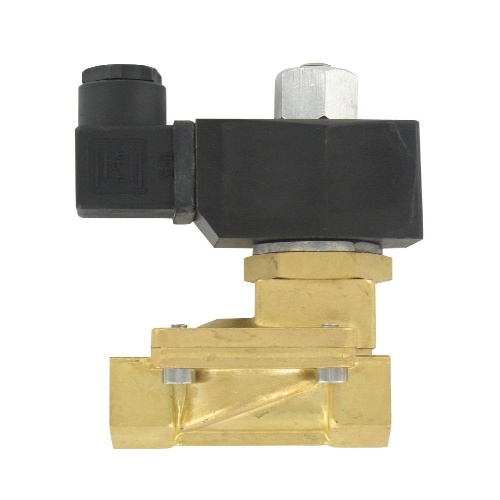

Dwyer SSV-B2N2 is a 2-way guided solenoid valve made of brass, suitable for temperatures up to 176°F (80°C). It operates with a standard 110 VAC power requirement, with optional 220 VAC or 24 VDC capabilities. With an enclosure rating of NEMA 13 (IP54) and electrical connections via DIN, it is compatible with gases and liquids. The valve can be mounted in any position, but it is best if the solenoid is vertically above the valve. Its wetted material includes a brass body, 304 stainless steel spring, and NBR seal. The valve has a pressure limit of 174 psi (12 bar) and features a female NPT process connection. The nylon material and line sizes ranging from 1/8 to 2" NPT ensure reliable performance. Its maximum operating pressure ranges from 0 psi (0 bar) to 87 psi (6 bar) for sizes 1/8 to 1/4" and 7.3 psi (0.5 bar) to 116 psi (8 bar) for sizes 3/8 to 2". It offers a normally open (NO) type of operation.
