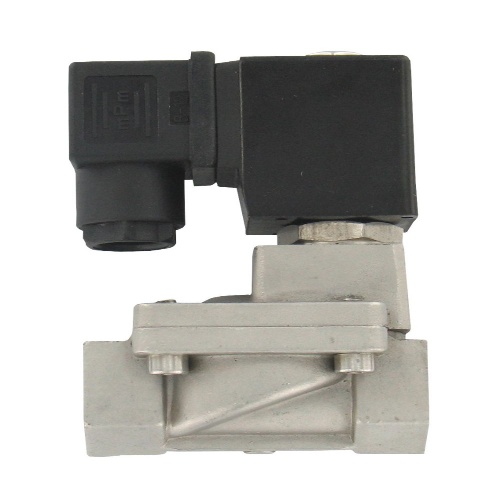

Dwyer SBSV-S5F1 is a 2-way guided NC solenoid valve with a temperature range of 32 to 149°F (0 to 65°C) for ambient temperature and 176°F (80°C) for process temperature. It has a power requirement of 110 VAC as standard, with optional 220 VAC, 24 VDC, and 24 VAC. The valve has an enclosure rating of NEMA 13 (IP54) and electrical connections using DIN connectors. It is suitable for use with compatible gases and liquids and has a pressure limit of 246.6 psi (17 bar). The wetted material includes a 316 SS body, 304 SS spring, and a Fluoroelastomer seal. The valve has a female NPT process connection and a nylon material construction. It is available in various line sizes ranging from 1/8" to 2" NPT. The maximum operating pressure ranges from 0 psi (0 bar) to 188.5 psi (13 bar) for 1/8" to 1/4" sizes and 7.3 psi (0.5 bar) to 188.5 psi (13 bar) for 3/8" to 2" sizes. The valve operates in a normally closed (NC) mode and can be mounted in any orientation, with the best performance achieved when the solenoid is vertically placed above the valve.
