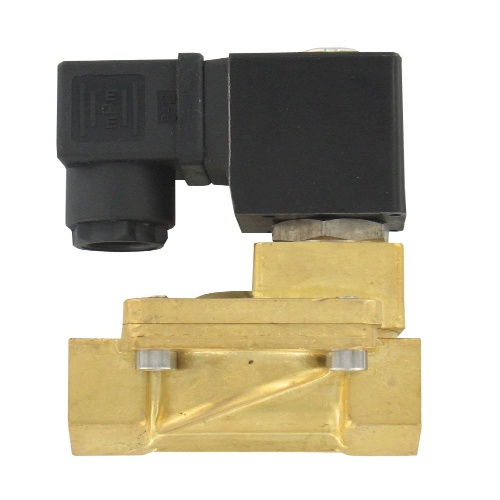

Dwyer SBSV-B5N3 is a brass solenoid valve designed for 2-way guided NC operations. It has a temperature range of 32 to 176°F (0 to 80°C) and operates on 110 VAC power. The valve has a NEMA 13 (IP54) enclosure rating and DIN electrical connections. It is compatible with gases and liquids and has a pressure limit of 246.6 psi (17 bar). The valve can be mounted in any position, with the best performance achieved when the solenoid is vertically above the valve. Wetted materials include brass, 304 SS, and NBR seals. The valve is designed for female NPT process connections with line sizes ranging from 1/8 to 2" NPT. The maximum operating pressure depends on the line size, with 0 psi (0 bar) to 188.5 psi (13 bar) for 1/8 to 1/4" valves and 7.3 psi (0.5 bar) to 188.5 psi (13 bar) for 3/8 to 2" valves.
