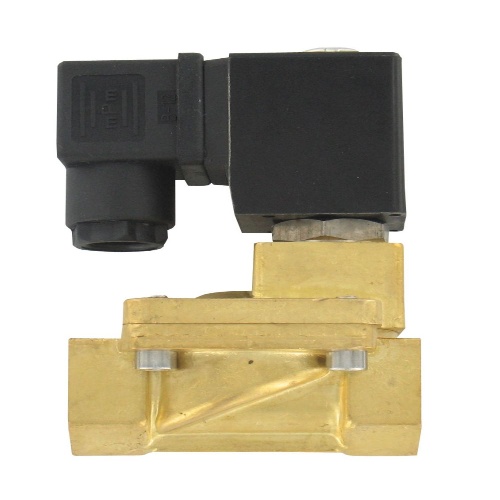

Dwyer SBSV-B5N2 is a 2-way guided NC brass solenoid valve that operates with a process temperature of up to 176°F (80°C) and an ambient temperature range of 32 to 149°F (0 to 65°C). It requires a power supply of 110 VAC, with optional 220 VAC, 24 VDC, or 24 VAC available upon consultation with the factory. The valve has a NEMA 13 (IP54) enclosure rating and features a DIN electrical connection. It is suitable for use with compatible gases and liquids and consumes power as specified in the catalog. The valve can be mounted in any position but is best installed with the solenoid vertically above the valve. The wetted material comprises a brass body, 304 stainless steel spring, and NBR seal. It has a pressure limit of 246.6 psi (17 bar) and a female NPT process connection. The nylon material, combined with line sizes ranging from 1/8 to 2" NPT, ensures reliable performance. The maximum operating pressure varies depending on the line size, with values ranging from 0 psi (0 bar) to 188.5 psi (13 bar). The valve operates in the normally closed (NC) mode.
