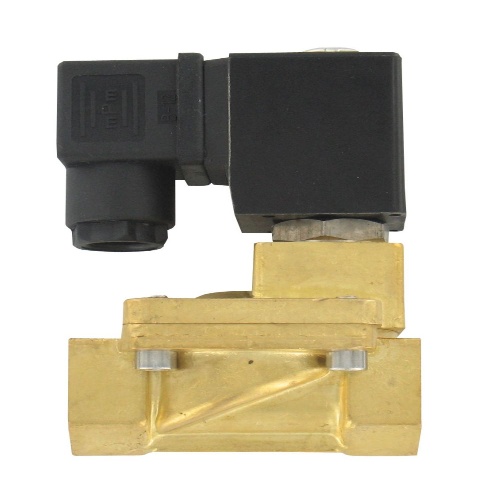

Dwyer SBSV-B5N1 Brass Solenoid Valves – 2-Way Guided Nc
Normally In Stock
Code: 569553
Dwyer SBSV-B5N1 - 2-way brass solenoid valve, 3/4", 7.25-188.5 psi, nbr seal, 110 VAC
Condition: New
Usually ships Same Day or Next Day$147.61
Sale Price
$123.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer SBSV-B5N1 is a 2-way guided Nc solenoid valve with a brass body. It has a temperature range of 32 to 149°F (0 to 65°C) and can handle a maximum operating pressure of 188.5 psi (13 bar). It is powered by 110 VAC, with optional power requirements of 220 VAC, 24 VDC, or 24 VAC. The valve is compatible with gases and liquids and has a NEMA 13 (IP54) enclosure rating. It features a DIN electrical connection and can be mounted in any position, with the best results obtained when the solenoid is vertically above the valve. The wetted materials include brass for the body, 304 SS for the spring, and NBR for the seal. The process connection is female NPT and the line size ranges from 1/8 to 2" NPT. Power consumption details are available in the catalog.
Specifications
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Supply Voltage
110 VAC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
220 VAC
Component
Solenoid Valve
Sub Component
Brass Solenoid Valves – 2-Way Guided Nc
(Instrument-Sensor) Temperature Range
Process: 176°F/80°C
(Instrument-Sensor) Temperature Range
Ambient: 32 - 149°F/0 - 65°C
Manufacturer
Dwyer Instruments
Features
Can be oriented in any position
Compact design
Field replaceable coils
