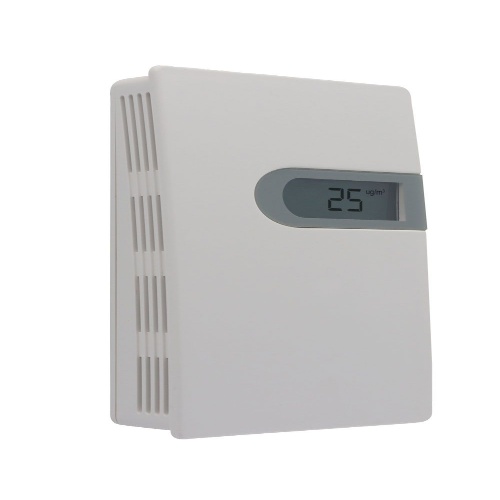

Dwyer PMI-10WC-N-LCD Particulate Matter Transmitter
Normally In Stock
Code: 569342
Dwyer PMI-10WC-N-LCD - Particulate transmitter, PM 10 wall mount, 4-20 mA, 0-10V, LCD display, Modbus®
Condition: New
Usually ships Same Day or Next Day$378.19
Sale Price
$315.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PMI-10WC-N-LCD is a Particulate Matter Transmitter designed for air quality monitoring. It has an operating temperature range of 32 to 122°F and an accuracy of ±10 µg/m3. The transmitter features a response time of less than 10 seconds and a range of 0-600 µg/m3. It is equipped with a laser scattering sensor and offers multiple output options including current, voltage, relay, and RS-485/Modbus®. The PMI-10WC-N-LCD has a service life of up to 8-10 years and is available with an optional 4-digit LCD display.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Type
Particulates
(Instrument-Sensor) Supply Voltage
16-28 VAC
(Instrument-Sensor) Measurement Accuracy
10 Μg/M3
(Instrument-Sensor) Temperature Range
Operating: 32 - 122°F/0 - 50°C
(Instrument-Sensor) Temperature Range
Storage: -22 - 158°F/-30 - 70°C
(Instrument-Sensor) Supply Voltage
6-35 VDC
Manufacturer
Dwyer Instruments
Component
Particulate Matter Transmitter
Features
Maintains healthy air supply with long term stability and accuracy
Particulate matter application independent as duct and wall mount units are available
Low maintenance with 10 years of service life in auto mode
Minimal downtime with overvoltage protection
Easy setup with optional integral display and buttons
Saves time using removable terminal block on duct mount model
Single unit controller with alarm, control modes, and optional relay
