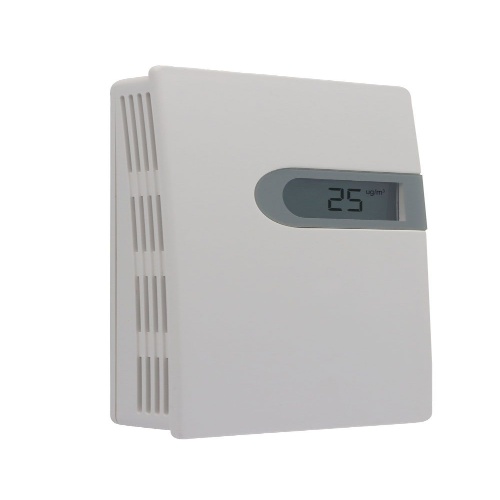

Dwyer PMI-10WA-N-N Particulate Matter Transmitter
Normally In Stock
Code: 569339
Dwyer PMI-10WA-N-N - Particulate transmitter, PM 10 wall mount, 4-20 mA, 0-10V
Condition: New
Usually ships Same Day or Next Day$368.34
Sale Price
$306.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PMI-10WA-N-N is a Particulate Matter Transmitter with a temperature operating range of 32 to 122°F and storage range of -22 to 158°F. It has an accuracy of ±10 µg/m3 and a response time of <10 s. The transmitter has a range of 0-500 µg/m3 for PMI-2.5 and 0-600 µg/m3 for PMI-10. It has a laser scattering sensor and an enclosure rating of IP30 for wall mount and IP65 for duct mount. The transmitter offers various outputs including current, voltage, relay, and RS-485/Modbus® (RTU). It has a service life of 8-10 years and an optional 4-digit LCD display.
Specifications
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) Type
Particulates
(Instrument-Sensor) Supply Voltage
16-28 VAC
(Instrument-Sensor) Measurement Accuracy
10 Μg/M3
(Instrument-Sensor) Temperature Range
Operating: 32 - 122°F/0 - 50°C
(Instrument-Sensor) Temperature Range
Storage: -22 - 158°F/-30 - 70°C
(Instrument-Sensor) Supply Voltage
6-35 VDC
Manufacturer
Dwyer Instruments
Component
Particulate Matter Transmitter
Features
Maintains healthy air supply with long term stability and accuracy
Particulate matter application independent as duct and wall mount units are available
Low maintenance with 10 years of service life in auto mode
Minimal downtime with overvoltage protection
Easy setup with optional integral display and buttons
Saves time using removable terminal block on duct mount model
Single unit controller with alarm, control modes, and optional relay
