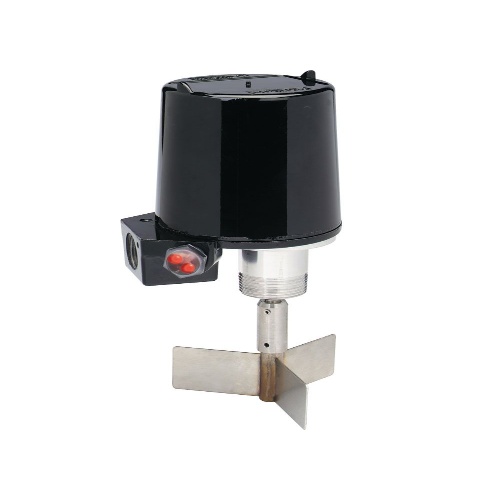

Dwyer PLS-EXT-GS-036 Paddle Level Switch
Normally In Stock
Code: 569320
Dwyer PLS-EXT-GS-036 - 36" galvanized extension
Condition: New
Usually ships Same Day or Next Day$178.16
Sale Price
$148.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PLS-EXT-GS-036 is a paddle level switch designed for dry powder or bulk material applications. It operates in temperature ranges of -40 to 300°F (-40 to 148.9°C) and -40 to 500°F (-40 to 260°C). This switch is available in different power requirements, with various enclosure ratings and electrical ratings. It features a 316 SS construction with a PTFE shaft seal and aluminum mounting boss. The switch has a sensitivity range from 5 lb/ft³ to 200 lb/ft³ and offers time delay options and indication lights.
Specifications
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Supply Voltage
48 VAC
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Temperature Range
Ambient: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Application
Bulk Solids
Component
Level Switch
(Instrument-Sensor) Hazardous Location Class
Class I - Groups A-D
(Instrument-Sensor) Hazardous Location Class
Class II - Groups E-G
(Instrument-Sensor) Type
Paddle
(Instrument-Sensor) Application
Dry Powder
(Instrument-Sensor) Temperature Range
Process: -40 - 300°F/-40 - 148.9°C
(Instrument-Sensor) Temperature Range
Process: -40 - 500°F/-40 - 260°C
(Instrument-Sensor) Supply Voltage
110-120 VAC
Manufacturer
Dwyer Instruments
Features
Incorporated in the design of the PLS is a magnetic drive that is time proven by decades of use in our Mark Series valve position indicator product line
A 1 rpm synchronous motor rotates the paddle utilizing a magnetic drive
As product builds up the paddle is impeded from moving and the resulting motor torque activates the output switches and stops the motor
A spring mechanism reactivates the motor and returns the switches to normal state when the product no longer impedes the paddle rotation
Standard construction is weatherproof with explosion-proof optional, and the unit can be side or top mounted
The PLS is designed with the industry standard 1-1/4˝ male NPT connection and mounting flanges.
