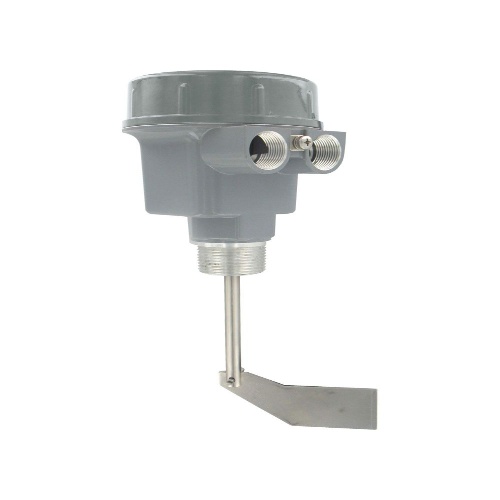

Dwyer PLS2-E-1-3 Paddle Level Switch
Normally In Stock
Code: 569309
Dwyer PLS2-E-1-3 - Explosion-proof paddle level switch, 24 VDC power supply
Condition: New
Usually ships Same Day or Next Day$489.48
Sale Price
$407.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PLS2-E-1-3 is a paddle level switch designed for dry powder or bulk materials. It has a temperature range of -13 to 176°F (-25 to 80°C) and a pressure limit of 11.6 psi (0.8 bar). The switch is powered by 115 VAC, 230 VAC, or 24 VDC and requires minimal power consumption. It is enclosed in a NEMA 4 (IP66) rated aluminum coating and is suitable for side or top mounting. The SPDT micro switch has an electrical rating of 5 A @ 250 VAC and 3 A @ 30 VDC. The switch is sensitive to a minimum material density of 6 lb/ft3 (96 kg/m3) and is capable of withstanding mechanical loading up to 67 lbf (300 N) max.
Specifications
(Instrument-Sensor) Supply Voltage
24 VDC
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Application
Bulk Solids
Component
Level Switch
(Instrument-Sensor) Temperature Range
Ambient: -4 - 140°F/-20 - 60°C
(Instrument-Sensor) Type
Paddle
(Instrument-Sensor) Application
Dry Powder
(Instrument-Sensor) Temperature Range
Process: -13 - 176°F/-25 - 80°C
(Instrument-Sensor) Supply Voltage
115 VAC
Manufacturer
Dwyer Instruments
Features
Incorporated in the design of the PLS is a magnetic drive that is time proven by decades of use in our Mark Series valve position indicator product line
A 1 rpm synchronous motor rotates the paddle utilizing a magnetic drive
As product builds up the paddle is impeded from moving and the resulting motor torque activates the output switches and stops the motor
A spring mechanism reactivates the motor and returns the switches to normal state when the product no longer impedes the paddle rotation
Standard construction is weatherproof with explosion-proof optional, and the unit can be side or top mounted
The PLS is designed with the industry standard 1-1/4˝ male NPT connection and mounting flanges.
