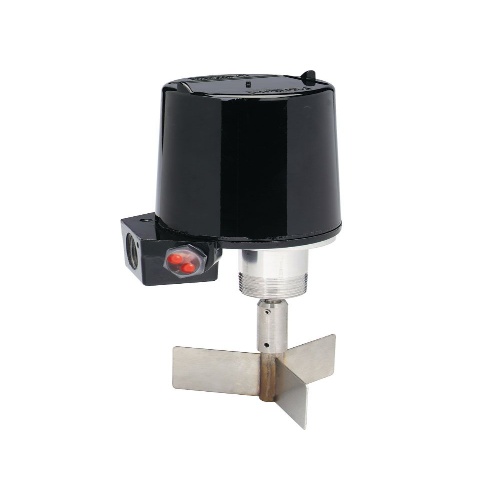

Dwyer PDL-1 Paddle Level Switch
Normally In Stock
Code: 569294
Dwyer PDL-1 - Carbon steel paddle with half coupling. Minimum bulk density of 5 lb/ft³ (80 kg/m³).
Condition: New
Usually ships Same Day or Next Day$71.71
Sale Price
$59.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PDL-1 Paddle Level Switch is a versatile and reliable product suitable for various industrial applications. With a temperature range of -40 to 500°F and various power options, it offers flexibility to meet specific requirements. It is designed with durable materials like 316 SS paddles and a PTFE shaft seal. The switch is available in both weatherproof and explosion-proof enclosures, making it suitable for different environmental conditions. It has a maximum pressure limit of 30 psig and is compatible with a wide range of dry powder or bulk materials. The switch is equipped with a red LED indication light and offers time delay options for enhanced functionality.
Specifications
(Instrument-Sensor) Supply Voltage
12 VDC
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Supply Voltage
48 VAC
(Instrument-Sensor) Supply Voltage
230 VAC
(Instrument-Sensor) Temperature Range
Ambient: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Application
Bulk Solids
Component
Level Switch
(Instrument-Sensor) Hazardous Location Class
Class II - Groups E-G
(Instrument-Sensor) Hazardous Location Class
Class I - Groups C And D
(Instrument-Sensor) Type
Paddle
(Instrument-Sensor) Application
Dry Powder
(Instrument-Sensor) Temperature Range
Process: -40 - 300°F/-40 - 148.9°C
(Instrument-Sensor) Temperature Range
Process: -40 - 500°F/-40 - 260°C
(Instrument-Sensor) Supply Voltage
110-120 VAC
Manufacturer
Dwyer Instruments
Features
Magnetic drive isolates and completely seals the control head from the process and environment preventing material or dust from entering the control head
Motor shuts-off when paddle stalls increasing motor life, preventing motor burnout, and decreasing power usage
Slip clutch design enabled by the magnetic drive that prevents damage to motor and drive mechanism from sudden or excessive loading on the paddle
Status indication light on weatherproof models
Screw cover on the enclosure for easy access with no worries about losing bolts or screws
Modular design to allow field installation of any paddle, flanges, shaft extensions, or shaft guards
Flexible coupling available for protection of the paddle and drive from side loads, surges or impacts. Recommended for top mount applications with shaft extension and applications with large or heavy materials
