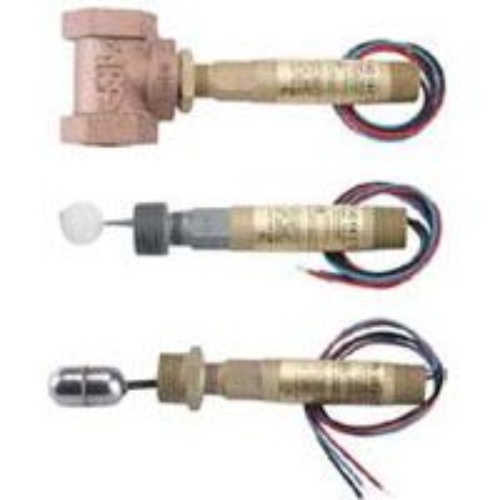

Dwyer L6EPB-B-D-3-C Flotect® Liquid Level Switch
Normally In Stock
Code: 569132
Dwyer L6EPB-B-D-3-C - L6EPB-BD3C FLOTECT LEVEL SW
Condition: New
Usually ships Same Day or Next Day$578.57
Sale Price
$482.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer L6EPB-B-D-3-C is a FLOTECT® liquid level switch with a temperature range of -4 to 220°F (-20 to 105°C) and an optional high temperature option of 400°F (205°C). It is weatherproof and explosion-proof, listed with UL and CSA for various class and group ratings. It is also ATEX compliant and IECEx certified. The switch has a wide range of electrical ratings and can be used with liquids compatible with its wetted materials. It has a SPDT snap switch standard, with a DPDT snap switch optional. The conduit connection is 3/4" (19.05 mm) male NPT standard.
Specifications
(Instrument-Sensor) Application
Liquid
Component
Level Switch
(Instrument-Sensor) Temperature Range
High Temp: 400°F/205°C
(Instrument-Sensor) Hazardous Location Class
Class I - Groups A-D
(Instrument-Sensor) Hazardous Location Class
Class II - Groups E-G
(Instrument-Sensor) Type
Liquid
(Instrument-Sensor) Temperature Range
Standard: -4 - 220°F/-20 - 105°C
(Instrument-Sensor) Temperature Range
Ambient: -4 - 167°F/-20 - 75°C
(Instrument-Sensor) Temperature Range
Process: -4 - 220°F/-20 - 105°C
Manufacturer
Dwyer Instruments
Features
Compact design is built for years of trouble-free service
Simple and dependable operation with no mechanical linkage
Float lever pivoted within the body moves when the process liquid displaces the float and magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing
Leak proof lower body machined from bar stock
Side wall or direct tee mounting options available to act as an external float chamber
Weatherproof and explosion-proof body for demanding outdoor applications
Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down
Sensitive to level changes of less than 1/2˝ (12 mm)
