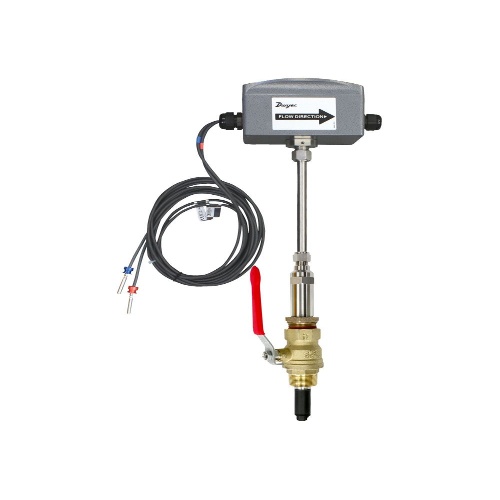

Dwyer IEFB-HN-CNDR10LCDCOM Remote Display For Series IEF/IEFB
Normally In Stock
Code: 569054
Dwyer IEFB-HN-CNDR10LCDCOM - Insertion Electromagnetic energy system with LCD display, high accuracy 4 to 10" (100-250 MM) pipe, 1% of reading, 1" male NPT process connection, NPT process connections, conduit connection, (2) 10' (3 M) PT temperature sensors with hot-tap thermowells, BACnet/Modbus® communication output
Condition: New
Usually ships Same Day or Next Day$7845.74
Sale Price
$6538.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer IEFB-HN-CNDR10LCDCOM is a remote display component designed for use with the Series IEF and IEFB products. It has an ambient temperature range of -4 to 158°F (-20 to 70°C) and a storage temperature range of -40 to 185°F (-40 to 85°C). The enclosure has a NEMA 4X (IP66) rating and is made of powder coated die cast aluminum. It features a 3.3" diagonal graphic LCD display with backlight and can be mounted on walls or pipes in any orientation. The electrical connections are made through removable terminal blocks with #22 AWG wire (up to 100 ft/30 m).
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
Component
Remote Display
(Instrument-Sensor) Temperature Range
Ambient: -4 - 158°F/-20 - 70°C
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
Manufacturer
Dwyer Instruments
Features
Save time and reduce installation costs with flow, temperature sensors and calculator delivered in one preprogrammed, complete package.
Maintain system energy efficiency with high performance accuracy that is maintained through changes in temperature, density or viscosity per universally accepted standard
Meet application requirements with field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP), which accommodate a variety of application configurations with one model through multiple display configurations i.e. pipe size, pipe material, liquid type, analog output, pulse/frequency output, alarm outputs, communication outputs, damping, and calibration factor
Quick and easy ordering and set up with Setup Wizard and installation tool that are simple to use and allow for precise installation
Save time with accessory setup kit A-IEF-KIT that ensures exact installation application depth with included thickness gage and measuring tape
Reduced costs, long product life, and minimal maintenance requirements with no moving parts to wear or break and electrodes that discourage fouling
Minimize installation costs with isolation valve accessory options to allow for installation in operational systems via hot-tap kit or easy removal without system downtime
Required documents included with NIST traceable pass/ fail verification certificate included standard for Carbon Steel Schedule 40 pipes sized 100 mm (4 in), 150 mm (6 in), 200 mm (8 in)
