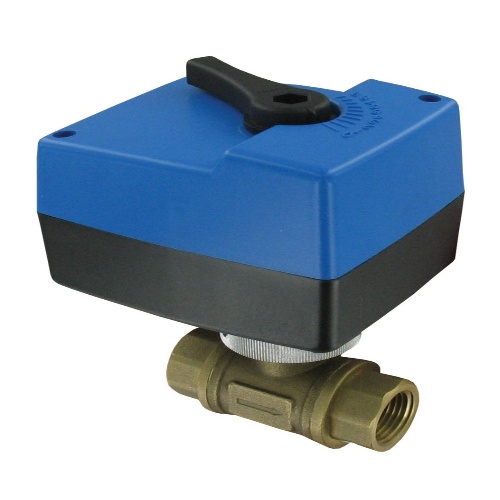

Dwyer HBAV0324 is a two-way detachable electric ball valve suitable for a wide temperature range from -22 to 158°F (-30 to 70°C). It operates on 120 VAC or 24 VAC, 50/60 Hz, and has an enclosure rating of NEMA 1 (IP10). The valve is compatible with various fluids and has a power consumption of 3 to 5 VA for floating mode and 4 VA for modulating mode. Its wetted materials include brass, stainless steel, NBR, and PTFE. With a maximum pressure limit of 375 psi (25 bar) and a close off pressure of 87 psi (6 bar), this valve ensures reliable performance. The electrical connections are 18 AWG, and the valve is designed with a female NPT process connection. The valve body is made of plastic, nylon, and polyoxymethylene. Input options include a 3-wire connection for floating mode and a 4-20 mA connection for modulating mode with 24 VAC power. The valve is available in line sizes ranging from 1/2 to 2" NPT and has a cycle time of 45 seconds for 1/2 to 1" valves and 50 seconds for 1-1/4 to 2" valves.
