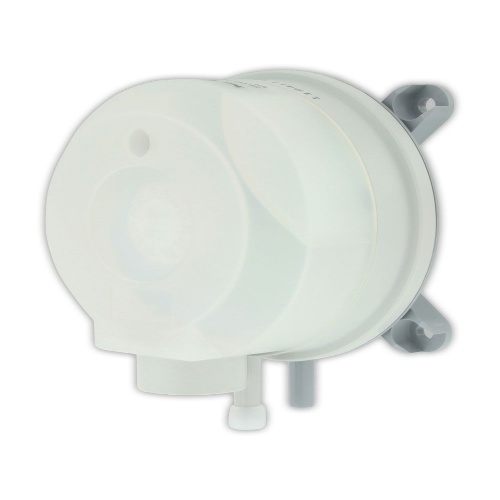

Dwyer EDPS-07-1-N Differential Pressure Switch
Normally In Stock
Dwyer EDPS-07-1-N - Adjustable differential pressure switch, range 4.00-20.00" w.c., with 1/2" NPT connection.
Condition: New
Usually ships Same Day or Next Day$43.92
Sale Price
$36.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer EDPS-07-1-N is a differential pressure switch suitable for air and non-combustible gases. With an enclosure rating of NEMA 3 and push-on screw terminals, it can handle process and ambient temperatures ranging from -4 to 185°F (-20 to 85°C). It features a single-pole double-throw switch type with a maximum operating pressure of 40" w.c. (10 kPa). This reliable switch has a mechanical working life of over 106 switching operations.
Specifications
(Instrument-Sensor) IP Protection
IP54
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
Component
Pressure Switch
(Instrument-Sensor) Temperature Range
Process: -4 - 185°F/-20 - 85°C
Manufacturer
Dwyer Instruments
Features
Adjustment knob changes switching pressure easily with a pressure gage reducing components for application
Low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring
Relay contact allows simple integration with DDC or building systems
