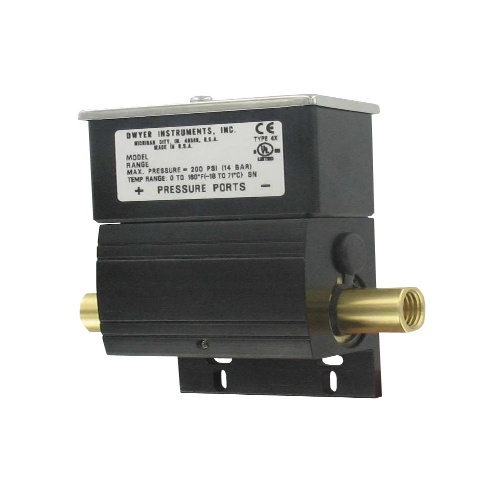

Dwyer DXW-11-153-2 Wet/Wet Differential Pressure Switch
Normally In Stock
Code: 568943
Dwyer DXW-11-153-2 - Differential pressure switch, brass and fluoroelastomer wetted materials, NEMA 4X, 1/4" NPT connections, SPDT, range 10 to 25 psi.
Condition: New
Usually ships Same Day or Next Day$167.00
Sale Price
$139.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DXW-11-153-2 is a wet/wet differential pressure switch suitable for temperatures ranging from 30 to 140°F (-1 to 60°C). It has a weatherproof UL type 4X (IP65) enclosure with an aluminum body, polycarbonate housing, and a 300 SS cover. The switch comes with a removable terminal block for easy electrical connections. It is compatible with gases and liquids and can handle a maximum static pressure of 200 psig (13.8 bar). The SPDT snap switch has a repeatability of ±2% of full range and an electrical rating of 5 A @ 125/250 VAC. The set point can be adjusted externally via an external screw. The switch has a 1/4" NPT female process connection and is suitable for use both indoors and outdoors.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
Component
Differential Pressure Switch
(Instrument-Sensor) Temperature Range
30 - 140°F/-1 - 60°C
Manufacturer
Dwyer Instruments
Features
Differential pressure switch that is suitable for most gas and water-based applications allows multiple uses in the most sophisticated designs
Weatherproof housing provides protection in the harsh, wet or dirty environments ensuring switch’s long-service life
Removable terminal block reduces installation time
