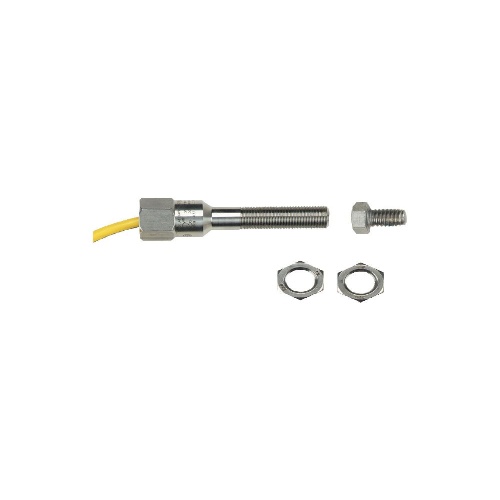

Dwyer DT1160 Position Sensor
Normally In Stock
Code: 568941
Dwyer DT1160 - Detector and high strength actuator, sensing distance 0.5" (12.7 mm)
Condition: New
Usually ships Same Day or Next Day$330.01
Sale Price
$275.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DT1160 is a position sensor designed for hazardous locations. With a temperature range of -40 to 163°F (-40 to 73°C) and a response time of 3.0 msec, it provides reliable and accurate measurements. The 316 stainless steel enclosure is weatherproof, hermetically sealed, and explosion-proof. It has a switch type of tungsten, SPDT, Form C, and an electrical rating of 3A at 125 VAC, 3A at 30 VDC. The sensor is intrinsically safe, with a potting of epoxy resin and an initial contact resistance of 0.50 ohms (max). The electrical connections are factory sealed with a minimum of 18" 4 conductor PVC insulated cable.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
Component
Positioning
(Instrument-Sensor) Hazardous Location Class
Class I - Div. 1 & 2
Sub Component
Position Sensor
(Instrument-Sensor) Temperature Range
-40 - 163°F/-40 - 73°C
Manufacturer
Dwyer Instruments
