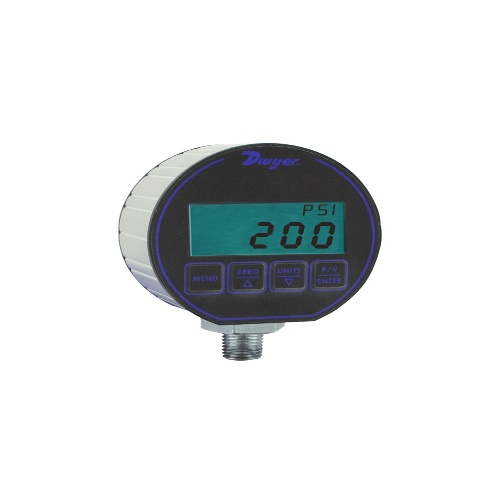

Dwyer DPG-209 Digital Pressure Gauge
Normally In Stock
Code: 568919
Dwyer DPG-209 - Digital pressure gauge, selectable engineering units: 1000 psig, 70.3 kg/cm², 68.98 bar, 2036" Hg, 2307 ft w.c., 2248 ft seawater @ 4°C, 6895 kPa.
Condition: New
Usually ships Same Day or Next Day$760.10
Sale Price
$633.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPG-209 is a digital pressure gauge with a temperature range of 0 to 130°F. It offers high accuracy, with options for 0.5% FS or ±0.25% FS. The gauge is powered by two AAA alkaline batteries (included) and has an enclosure rating of NEMA 4/4X. It features a polycarbonate housing with an aluminum extruded housing and a 4-digit display. The wetted material is type 316L SS and the process connection is 1/4" male NPT. The gauge has a battery life of 2000 hours and offers an auto shut-off feature. The dimensions are 3.00" OD x 1.90" deep.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP66
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) NEMA Protection
NEMA 4/4X
(Instrument-Sensor) Temperature Range
0 - 130°F/-18 - 55°C
(Instrument-Sensor) Supply Voltage
AAA Battery
Manufacturer
Dwyer Instruments
Features
High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time
