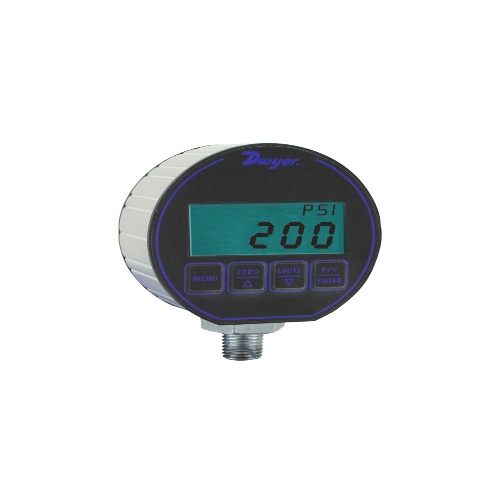

Dwyer DPG-207 Digital Pressure Gauge
Normally In Stock
Code: 568917
Dwyer DPG-207 - Digital pressure gauge, selectable engineering units: 300.0 psig, 21.09 kg/cm², 20.69 bar, 610.8" Hg, 692.1 ft w.c., 674.5 ft seawater @ 4°C, 2069 kPa, 4800 oz/in², 8304" w.c.
Condition: New
Usually ships Same Day or Next Day$653.08
Sale Price
$544.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPG-207 Digital Pressure Gauge is a reliable and accurate device with a temperature range of 0 to 130°F (-18 to 55°C). It offers three different accuracy options: DPG-000 (0.5% FS), DPG-100 (±0.25% FS), and ±1 least significant digit @ 70°F (21°C). The gauge is powered by two AAA alkaline batteries and has a durable enclosure with a NEMA 4/4X (IP66) rating. It is compatible with liquids and combustible gases and features a 4-digit display. The wetted material is made of Type 316L SS for durability, and the process connection is a 1/4" male NPT. The gauge has a thermal effect of 0.016%/F to 0.50%/F depending on the temperature range. It has compact dimensions of 3.00" OD x 1.90" deep and a battery life of 2000 hours. The gauge also has an auto shut-off feature, with a 60-minute auto shut-off for the gauge and a 2-minute auto shut-off for the backlight.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP66
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) NEMA Protection
NEMA 4/4X
(Instrument-Sensor) Temperature Range
0 - 130°F/-18 - 55°C
(Instrument-Sensor) Supply Voltage
AAA Battery
Manufacturer
Dwyer Instruments
Features
High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time
