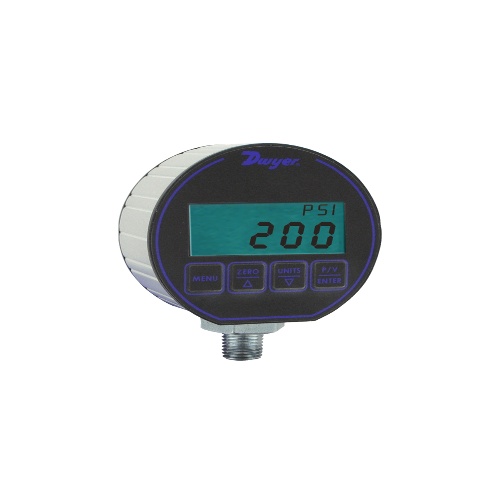

Dwyer DPG-205 Digital Pressure Gauge
Normally In Stock
Code: 568915
Dwyer DPG-205 - Digital pressure gauge, selectable engineering units: 100.0 psig, 7.03 kg/cm², 6.895 bar, 203.6" Hg, 230.7 ft w.c., 224.8 ft seawater @ 4°C, 689.5 kPa, 1600 oz/in², 2768" w.c., 6895 mbar, 7031 cm w.c., 5172 mm Hg.
Condition: New
Usually ships Same Day or Next Day$653.08
Sale Price
$544.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPG-205 is a digital pressure gauge with a temperature range of 0 to 130°F, offering high accuracy readings. It is powered by (2) AAA batteries and has a durable enclosure with an IP66 rating. The gauge is suitable for use with liquids and combustible gases, and features a 4-digit display. The wetted material is Type 316L SS and it has a pressure limit of 2x the range. The gauge also has a low battery indicator and an auto shut-off function.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP66
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) NEMA Protection
NEMA 4/4X
(Instrument-Sensor) Temperature Range
0 - 130°F/-18 - 55°C
(Instrument-Sensor) Supply Voltage
AAA Battery
Manufacturer
Dwyer Instruments
Features
High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time
