Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

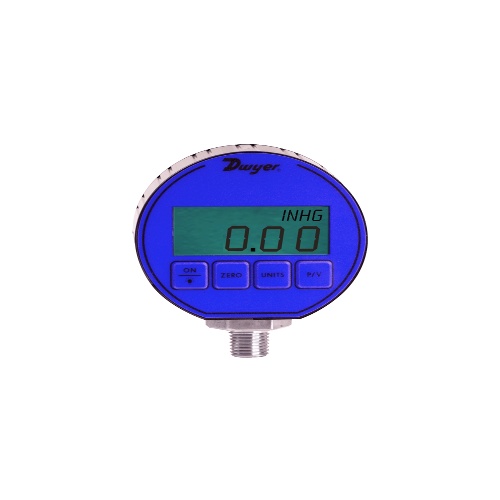

Dwyer DPG-102 Digital Pressure Gauge
Normally In Stock
Code: 568900
Dwyer DPG-102 - Digital pressure gauge, selectable engineering units: 15.00 psi, 1.055 kg/cm², 1.034 bar, 30.54" Hg, 34.61 ft w.c., 103.4 kPa, 240 oz/in², 415.2" w.c., 1034 mbar, 1055 cm w.c., 775.7 mm Hg, CE and FM approved.
Condition: New
Usually ships Same Day or Next Day$410.24
Sale Price
$341.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPG-102 is a digital pressure gauge with a temperature range of 0 to 130°F (-18 to 55°C). It has high accuracy, with variations depending on model. It operates on two AAA alkaline batteries and meets NEMA 4/4X (IP66) enclosure rating. The gauge is suitable for use with liquids and combustible gases. It has a compact display and is made with durable materials. It has a 1/4" male NPT process connection and is resistant to thermal effects. The gauge has a battery life of 2000 hours and features an auto shut-off function.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP66
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) NEMA Protection
NEMA 4/4X
(Instrument-Sensor) Temperature Range
0 - 130°F/-18 - 55°C
(Instrument-Sensor) Supply Voltage
AAA Battery
Manufacturer
Dwyer Instruments
Features
High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time
Downloads
Code: 568900
Dwyer DPG-102 Digital Pressure Gauge
$410.24
Sale Price
$341.87
