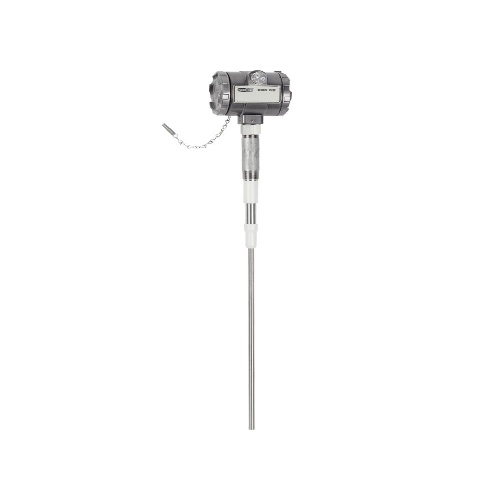

Dwyer CLS2-W11RK1-006 Capacitive Level Switch

Dwyer CLS2-W11RK1-006 Capacitive Level Switch is a weatherproof device suitable for liquids, powder, and bulk materials. It operates at temperatures ranging from -40 to 250°F, and power can be supplied from 12 to 240 VAC/DC. With a response time of 0.2 s and a pressure limit of 365 psi, it features a DPDT switch type and 8 selectable sensitivity settings. The switch can be adjusted to trip when the product touches the probe, with adjustable time delay and spark/static protection.

Specifications
Manufacturer	Dwyer
(Instrument-Sensor) NEMA Protection	NEMA 4X
(Instrument-Sensor) Application	Liquid
(Instrument-Sensor) Temperature Range	Ambient: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Application	Bulk Solids
(Instrument-Sensor) Type	Capacitive
(Instrument-Sensor) Application	Powder
(Instrument-Sensor) Temperature Range	-4 - 185°F/-20 - 85°C
(Instrument-Sensor) Temperature Range	Process: -40 - 250°F/-40 - 121°C
(Instrument-Sensor) Supply Voltage	12-240 VAC/DC
Component	Capacitive Level Switch
