Code: 568682

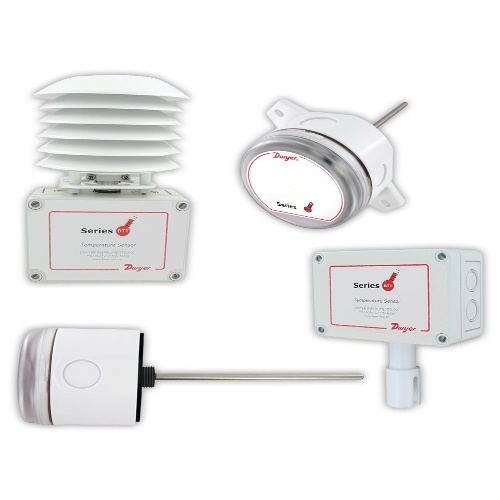

Dwyer BTT-I08-5 Temperature Transmitter
Normally In Stock
Dwyer BTT-I08-5 - Immersion temperature transmitter with 4 to 20 mA output, 0 to 100 C temperature range, 8" probe
Condition: New
Usually ships Same Day or Next Day$106.68
Sale Price
$88.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer BTT-I08-5 Temperature Transmitter is a reliable and accurate device, with a temperature range of 32 to 122 °F (0 to 50 °C) and an accuracy of ±0.5 °C at 25 °C. It operates on a power requirement of 13 to 36 VDC for current models or 13 to 36 VDC/16 to 28 VAC for voltage models. The response time is 100 ms, and it provides an output signal of 4 to 20 mA or 0 to 10 VDC, depending on the model. The enclosure rating is IP20, and it has screw terminal block connections for easy installation. The thermal effect is ±0.01% per °C, and the temperature sensor is a Pt 1000 Ohm RTD DIN Class A 0.00385 Ω/°C.
Specifications
(Instrument-Sensor) IP Protection
IP20
Component
Transmitter
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Supply Voltage
13-36 VDC
(Instrument-Sensor) Supply Voltage
16-28 VAC
Manufacturer
Dwyer Instruments
Features
Duct, immersion, and outside air models available
Radiation shield available for mounting in direct sunlight
Transmitter output allows for longer wire runs than standard thermistor sensors
