Code: 568679
Dwyer BTT-I06-6 Temperature Transmitter
Normally In Stock
Dwyer BTT-I06-6 - Immersion temperature transmitter with 0 to 10 V output, 0 to 100 C temperature range, 6" probe
Condition: New
Usually ships Same Day or Next Day$106.68
Sale Price
$88.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer BTT-I06-6 Temperature Transmitter offers an accuracy of ±0.5 °C @ 25 °C with a range of 32 to 122 °F (0 to 50 °C). It is powered by 13 to 36 VDC for current models or 13 to 36 VDC / 16 to 28 VAC for voltage models. The response time is 100 ms and the enclosure rating is IP20. It has a screw terminal block for electrical connections and offers an output signal of 4 to 20 mA or 0 to 10 VDC, depending on the model. The thermal effect is ±0.01%/°C and it uses a Pt 1000 O RTD DIN Class A 0.00385 Ω/°C temperature sensor.
Specifications
(Instrument-Sensor) IP Protection
IP20
Component
Transmitter
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Supply Voltage
13-36 VDC
(Instrument-Sensor) Supply Voltage
16-28 VAC
Manufacturer
Dwyer Instruments
Features

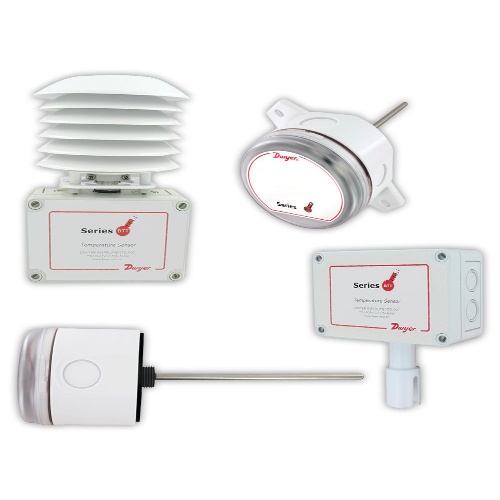

Duct, immersion, and outside air models available
Radiation shield available for mounting in direct sunlight
Transmitter output allows for longer wire runs than standard thermistor sensors
