Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 568676

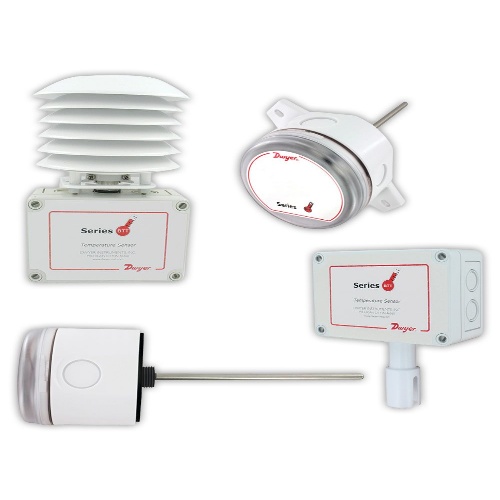

Dwyer BTT-I06-1 Temperature Transmitter
Normally In Stock
Dwyer BTT-I06-1 - Immersion temperature transmitter with 4 to 20 mA output, -40 to 60 C temperature range, 6" probe
Condition: New
Usually ships Same Day or Next Day$106.68
Sale Price
$88.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer BTT-I06-1 Temperature Transmitter offers an accuracy of ±0.5 °C at 25 °C. It operates on 13 to 36 VDC power for current models and 13 to 36 VDC or 16 to 28 VAC for voltage models. With a response time of 100 ms, it measures temperatures ranging from 32 to 122 °F (0 to 50 °C). The device has a IP20 enclosure rating, screw terminal block electrical connections, and offers a 4 to 20 mA or 0 to 10 VDC output signal. The transmitter utilizes a Pt 1000 RTD DIN Class A 0.00385 Ω/°C temperature sensor with a thermal effect of ±0.01%/°C.
Specifications
(Instrument-Sensor) IP Protection
IP20
Component
Transmitter
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Supply Voltage
13-36 VDC
(Instrument-Sensor) Supply Voltage
16-28 VAC
Manufacturer
Dwyer Instruments
Features
Duct, immersion, and outside air models available
Radiation shield available for mounting in direct sunlight
Transmitter output allows for longer wire runs than standard thermistor sensors
