Dwyer BTT-D12-1 Temperature Transmitter
Normally In Stock
Code: 568664
Dwyer BTT-D12-1 - Duct Mount Temperature Transmitter with 4 to 20 mA output, 12" probe
Condition: New
Usually ships Same Day or Next Day$109.42
Sale Price
$91.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer BTT-D12-1 is a temperature transmitter with a range of 32 to 122 °F (0 to 50 °C) and an accuracy of ±0.5 °C @ 25 °C. It has a response time of 100 ms and an enclosure rating of IP20. The transmitter can be powered by 13 to 36 VDC or 16 to 28 VAC. It provides an output signal of 4 to 20 mA or 0 to 10 VDC, depending on the model. The electrical connections are made through a screw terminal block. The temperature sensor is a Pt 1000 RTD DIN Class A with a thermal effect of ±0.01%/°C.
Specifications
(Instrument-Sensor) IP Protection
IP20
Component
Transmitter
(Instrument-Sensor) Temperature Range
32 - 122°F/0 - 50°C
(Instrument-Sensor) Supply Voltage
13-36 VDC
(Instrument-Sensor) Supply Voltage
16-28 VAC
Manufacturer
Dwyer Instruments
Features

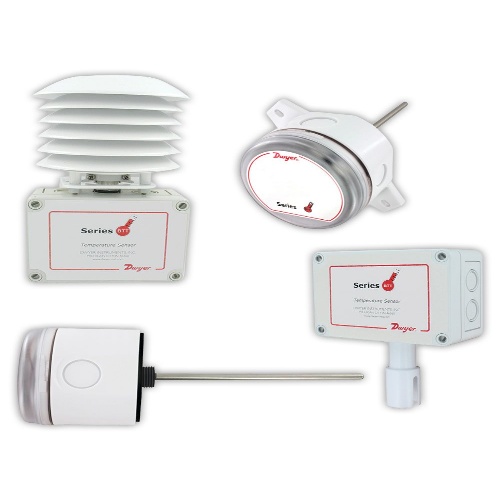

Duct, immersion, and outside air models available
Radiation shield available for mounting in direct sunlight
Transmitter output allows for longer wire runs than standard thermistor sensors
