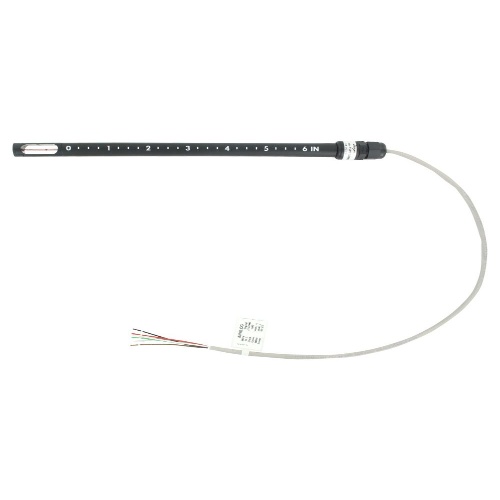

Dwyer AVPT-H20C1A12 Pencil Style Air Velocity Transmitter
Normally In Stock
Code: 568580
Dwyer AVPT-H20C1A12 - Air velocity transmitter, 3% accuracy, 20 m/s,12" probe, 20" pre-wired cable, analog output
Condition: New
Usually ships Same Day or Next Day$383.51
Sale Price
$319.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer AVPT-H20C1A12 is a pencil style air velocity transmitter with a temperature range of -4 to 140°F (-20 to 60°C). It offers standard and high accuracy options based on model specific requirements. With a power requirement of 24 VAC/VDC ±20%, it has a quick response time of 4 seconds and an enclosure rating of NEMA 3. The electrical connections are made through a plenum rated cable with 22 AWG conductors. It operates on clean air and can be mounted parallel to the flow direction. The current consumption is less than 50 mA and it is available in 6" or 12" probe lengths. It has a baud rate of 9600, 19200, 38400, 57600, 76800, and 115200 and ranges between 1000 to 4000 FPM (5 to 20 m/s) depending on the model. BACnet MS/TP can be selected at the time of order and it comes with a 5-pin M-12 cable whip of length 24" (0.6 m) or a 5-conductor cable whip of length 20" (0.5 m) or 78" (2 m).
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Application
Air
(Instrument-Sensor) Temperature Range
-4 - 140°F/-20 - 60°C
(Instrument-Sensor) Measurement Accuracy
5.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
Component
Air Velocity Transmitter
Manufacturer
Dwyer Instruments
Features
Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
Varying lengths for easy installation
Functionality at temperatures below freezing
