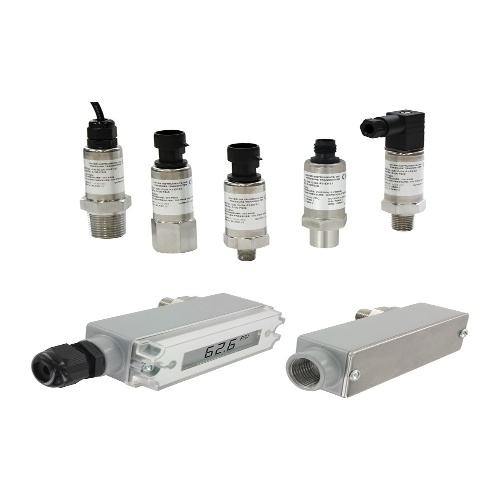

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Dwyer 626-10-CB-P1-E5-S9 Industrial Pressure Transmitter
Normally In Stock
Code: 568167
Dwyer 626-10-CB-P1-E5-S9 - Industrial pressure transmitter, range 0-100 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 200 psig, over pressure 500 psig.
Condition: New
Usually ships Same Day or Next Day$297.90
Sale Price
$248.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 626-10-CB-P1-E5-S9 is an industrial pressure transmitter with a temperature range of 0 to 200°F (-18 to 93°C). It offers high accuracy levels: 626: 0.25% FS, 626: 0.20% RSS, 628: 1.0% FS, 628: 0.5% RSS, 626 Absolute Ranges: 0.5% FS, 626 absolute ranges: 0.30% RSS. The power requirement is 10-30 VDC and it has a quick response time of 300 ms. It is encased in a NEMA 4X (IP66) rated enclosure and is compatible with various electrical connections. Mounting can be done in any position and it is suitable for use with compatible gases and liquids. The wetted material is Type 316L SS and it has a thermal effect of ±0.02% FS/°F. The loop resistance ranges from 0-1000 Ω max and the current consumption is 38 mA maximum.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Supply Voltage
5 VDC
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Supply Voltage
10-35 VDC
Component
Industrial Pressure Transmitter
(Instrument-Sensor) Measurement Accuracy
0.20%
(Instrument-Sensor) Measurement Accuracy
1.0%
(Instrument-Sensor) Measurement Accuracy
0.30%
(Instrument-Sensor) Temperature Range
0 - 200°F/-18 - 93°C
(Instrument-Sensor) Supply Voltage
13-30 VDC
(Instrument-Sensor) Supply Voltage
13-35 VDC
(Instrument-Sensor) Supply Voltage
16-33 VAC
(Instrument-Sensor) Measurement Accuracy
0.50%
Manufacturer
Dwyer Instruments
Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Robust 316L SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
A wide range of models and connections that can meet pressure measurement specifications from low to very high
