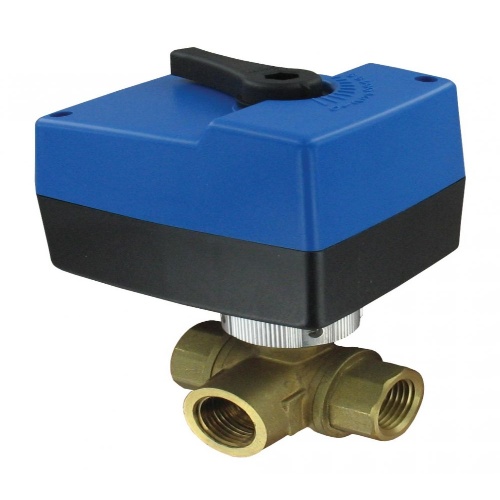

Dwyer 3HBAV0714 is a Three-Way Detachable Electric Ball Valve suitable for use in ambient temperatures ranging from -22 to 158°F (-30 to 70°C), with a process temperature range of 23 to 122°F (-5 to 50°C). It operates on either 120 VAC or 24 VAC, 50/60 Hz, single-phase power supply. The valve has a NEMA 1 (IP10) enclosure rating and uses 18 AWG electrical connections. It is compatible with various fluids and has a power consumption of 3 to 5 VA in floating mode and 4 VA in modulating mode. The wetted materials include brass, stainless steel (SS), NBR, and PTFE. It has a maximum pressure limit of 375 psi (25 bar) and a close off pressure of 87 psi (6 bar). The valve has a female NPT process connection and is made of plastic, nylon, and polyoxymethylene materials. The input can either be floating mode with a 3-wire connection or modulating mode with a 4 to 20 mA input (24 VAC power only). The valve is available in line sizes ranging from 1/2 to 2" NPT and has a cycle time of 45 seconds for 1/2 to 1" sizes and 50 seconds for 1-1/4 to 2" sizes. It features a 3-way, normally closed (NC) body configuration.
