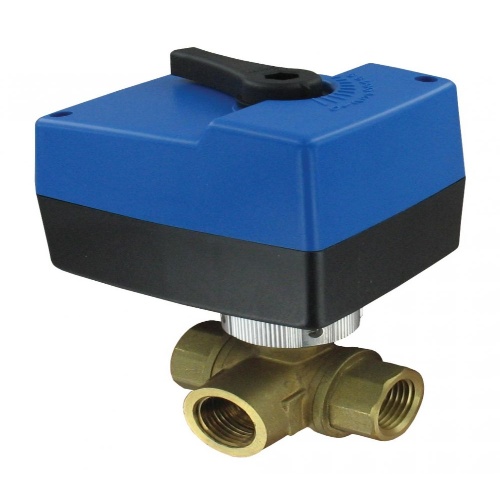

Dwyer 3HBAV0512 is a Three-Way Detachable Electric Ball Valve suitable for ambient temperatures ranging from -22 to 158°F (-30 to 70°C) and process temperatures ranging from 23 to 122°F (-5 to 50°C). It requires 120 VAC or 24 VAC, 50/60 Hz, single-phase power and has an enclosure rating of NEMA 1 (IP10) with 18 AWG electrical connections. The valve is compatible with a variety of fluids and has a power consumption of 3 to 5 VA in floating mode and 4 VA in modulating mode. It is made of brass, stainless steel, NBR, and PTFE and has a pressure limit of 375 psi (25 bar) with a close-off pressure of 87 psi (6 bar). The valve has female NPT process connections and is constructed from plastic, nylon, and polyoxymethylene. It can be operated in floating mode using a 3-wire input or in modulating mode using a 4-20 mA input with 24 VAC power. The valve is available in line sizes ranging from 1/2 to 2" NPT and has a cycle time of 45 seconds for 1/2 to 1" valves and 50 seconds for 1-1/4 to 2" valves. The body of the valve is a 3-way, normally closed configuration.
