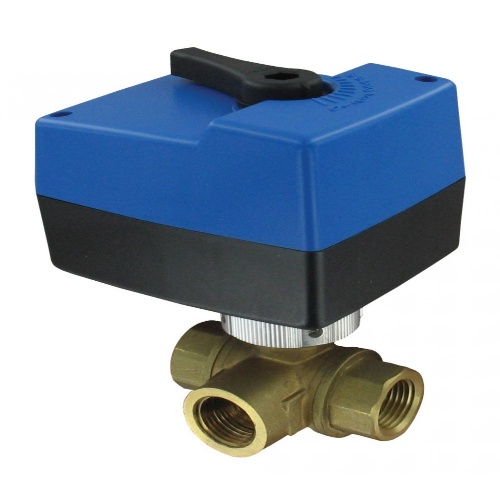

Dwyer 3HBAV0424 is a three-way detachable electric ball valve suitable for a wide temperature range (-22 to 158°F ambient, 23 to 122°F process). It operates on either 120 VAC or 24 VAC power and has an enclosure rating of NEMA 1. The valve features 18 AWG electrical connections and is compatible with various fluids. Power consumption ranges from 3 to 5 VA in floating mode and 4 VA in modulating mode. It is designed with wetted materials such as brass, stainless steel, NBR, and PTFE. The valve has a maximum pressure limit of 375 psi and a close-off pressure of 87 psi. It has a female NPT process connection and is made from plastic, nylon, and polyoxymethylene. Input options include 3-wire for floating mode and 4 to 20 mA for modulating mode. The line size ranges from 1/2 to 2" NPT. Cycle time for valve operation is 45 s for 1/2 to 1" size and 50 s for 1-1/4 to 2" size. The body configuration is 3-way Normally Closed.
