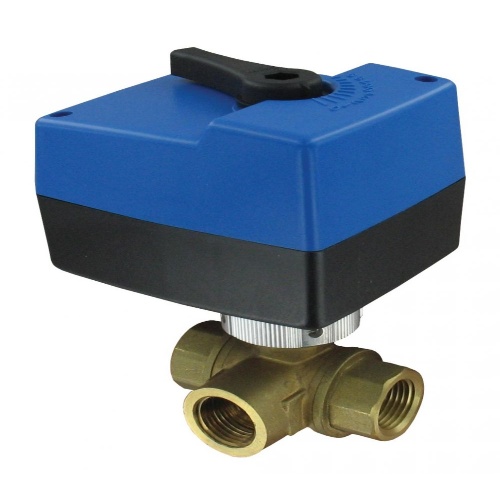

Dwyer 3HBAV0314 is a three-way detachable electric ball valve suitable for use in ambient temperatures ranging from -22 to 158°F (-30 to 70°C), with a process temperature range of 23 to 122°F (-5 to 50°C). It has a power requirement of 120 VAC or 24 VAC, 50/60 Hz, and a NEMA 1 (IP10) enclosure rating. The valve has 18 AWG electrical connections and can be used with compatible fluids. It consumes 3 to 5 VA in floating mode and 4 VA in modulating mode. The wetted materials include brass, stainless steel, NBR, and PTFE. The valve can handle a maximum pressure of 375 psi (25 bar) and has a close off pressure of 87 psi (6 bar). It has a female NPT process connection and is made of plastic, nylon, and polyoxymethylene. The input options include 3-wire for floating mode and 4 to 20 mA (24 VAC power only) for modulating mode. The valve is available in line sizes ranging from 1/2 to 2" NPT. The cycle time for valve sizes 1/2 to 1" is 45 seconds, and for valve sizes 1-1/4 to 2", it is 50 seconds. The body of the valve is a 3-way, normally closed design.
