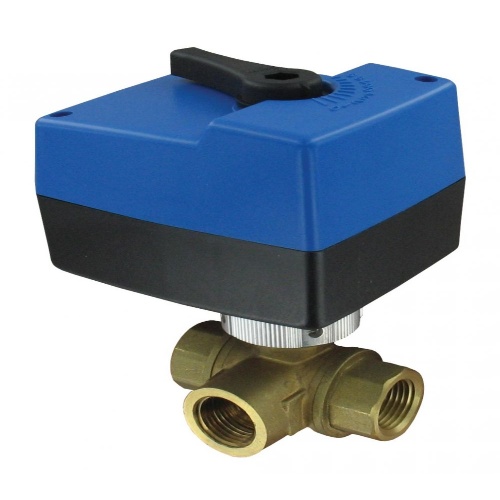

Dwyer 3HBAV0213 Three-Way Detachable Electric Ball Valve
Normally In Stock
Code: 567977
Dwyer 3HBAV0213 - 3HBAV0213 1/2NPT220/230VACFLTG
Condition: New
Usually ships Same Day or Next Day$268.27
Sale Price
$223.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 3HBAV0213 is a three-way detachable electric ball valve designed for compatibility with various fluids. It operates at a temperature range of -22°F to 158°F (-30°C to 70°C) in ambient conditions and 23°F to 122°F (-5°C to 50°C) in process conditions. It requires a power supply of 120 VAC or 24 VAC, 50/60 Hz, single phase. The enclosure has a NEMA 1 (IP10) rating and electrical connections are made using 18 AWG wire. It has a power consumption rating of 3 to 5 VA in floating mode and 4 VA in modulating mode. The wetted materials include brass, stainless steel, nitrile rubber, and PTFE. The maximum pressure limit is 375 psi (25 bar) with a close off pressure of 87 psi (6 bar). The valve has a female NPT process connection and its body is made of plastic, nylon, and polyoxymethylene. Input options include 3-wire for floating mode and 4 to 20 mA for modulating mode with 24 VAC power. It is available in line sizes ranging from 1/2" to 2" NPT and has a cycle time of 45 seconds for 1/2" to 1" and 50 seconds for 1-1/4" to 2" sizes. The valve operates as a 3-way normally closed (NC) valve.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) Supply Voltage
24 VAC
(Instrument-Sensor) Application
Liquid
Component
Valve
(Instrument-Sensor) Supply Voltage
120 VAC
Sub Component
Three-Way Detachable Electric Ball Valve
(Instrument-Sensor) IP Protection
IP10
(Instrument-Sensor) Temperature Range
Ambient: -22 - 158°F/-30 - 70°C
(Instrument-Sensor) Temperature Range
Process: 23 - 122°F/-5 - 50°C
Manufacturer
Dwyer Instruments
Features
Manual override
Detachable actuator
High Cv values
