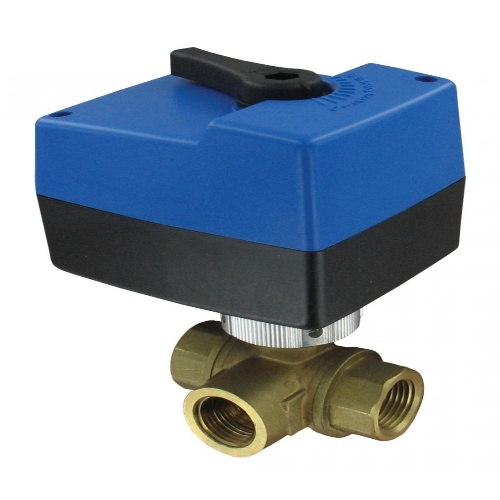

Dwyer 3HBAV0212 is a three-way detachable electric ball valve with a temperature range of -22 to 158°F for ambient and 23 to 122°F for process. It requires either 120 VAC or 24 VAC, 50/60 Hz power and has an enclosure rating of NEMA 1 (IP10). It features 18 AWG electrical connections and is compatible with various fluids. The valve has a power consumption of 3-5 VA for floating mode and 4 VA for modulating mode. The wetted materials include brass, stainless steel, NBR, and PTFE. The maximum pressure limit is 375 psi and the close off pressure is 87 psi. The process connection is female NPT and the line size ranges from 1/2 to 2" NPT. The cycle time is 45 s for 1/2 to 1" and 50 s for 1-1/4 to 2". The valve body is a 3-way, normally closed configuration.
