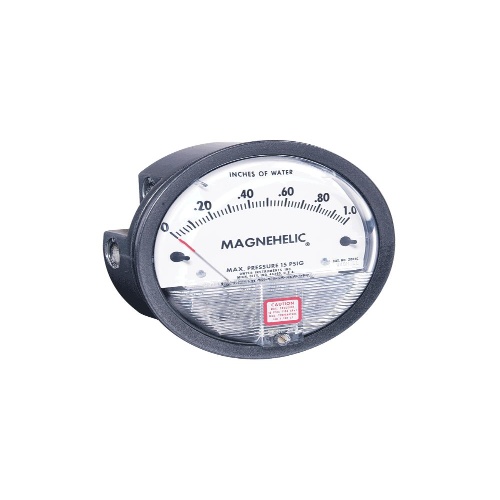

Dwyer 2000-2CM Magnehelic® Differential Pressure Gauge
Normally In Stock
Dwyer 2000-2CM - Differential pressure gauge, range 0-2 cm.
Condition: New
Usually ships Same Day or Next Day$159.26
Sale Price
$132.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 2000-2CM Magnehelic® differential pressure gauge is a highly accurate and reliable gauge suitable for measuring air and non-combustible gases. It has a temperature range of 20 to 140°F (-6.67 to 60°C) and an IP67 enclosure rating. The gauge features a die-cast aluminum housing with an acrylic cover and is coated gray to withstand corrosion. It has a 4" diameter dial face and comes with standard accessories including pressure taps and adapters. The gauge has a pressure limit of -20 in Hg to 15 psig and can be mounted with the diaphragm in a vertical position. Key specifications include an accuracy of ±2% (±1% with -HA model), with wetted material and hydrogen compatibility options available.
Specifications
(Instrument-Sensor) IP Protection
IP67
Component
Differential Pressure Gauge
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
(Instrument-Sensor) Temperature Range
20 - 140°F/-6.67 - 60°C
(Instrument-Sensor) Temperature Range
-20°F/-28°C
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Manufacturer
Dwyer Instruments
Features
Easy to read gage through undistorted plastic face permits viewing from far away
Patented design provides quick response to pressure changes means no delay in assessing critical situations
Durable and rugged housing and high-quality components combine to provide longservice life and minimized down-time
High accuracy option is twice as accurate as the standard Magnehelic® gage
