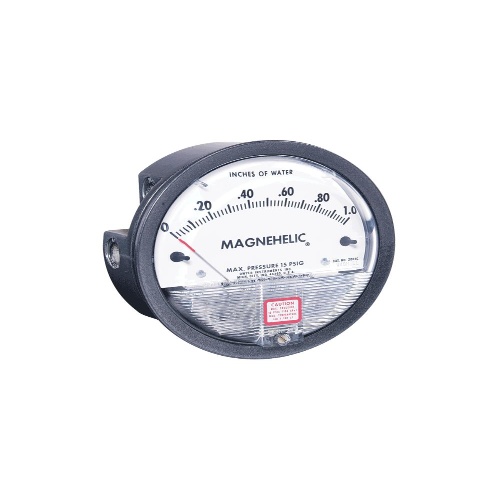

Dwyer 2000-10KPA Magnehelic® Differential Pressure Gauge
Normally In Stock
Dwyer 2000-10KPA - Differential pressure gauge, range 0-10 kPa, minor divisions .20.
Condition: New
Usually ships Same Day or Next Day$92.77
Sale Price
$77.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 2000-10KPA is a Magnehelic® differential pressure gauge with an accuracy of ±2% (±1% for -HA model) and an enclosure rating of IP67. It has a die-cast aluminum case and bezel with an acrylic cover, designed to withstand 168-hour salt spray corrosion test. It is suitable for air and non-combustible, compatible gases and can also be used with hydrogen. The gauge has a 4" diameter dial face and comes with standard accessories such as pressure taps and pipe adapters. The pressure limit ranges from -20 in Hg to 15 psig, with options for higher pressure limits available. Overall, this gauge provides reliable and accurate measurement for various applications.
Specifications
(Instrument-Sensor) IP Protection
IP67
Component
Differential Pressure Gauge
(Instrument-Sensor) Application
Air And Non-Combustible Compatible Gases
(Instrument-Sensor) Temperature Range
20 - 140°F/-6.67 - 60°C
(Instrument-Sensor) Temperature Range
-20°F/-28°C
(Instrument-Sensor) Measurement Accuracy
2.0%
(Instrument-Sensor) Measurement Accuracy
3.0%
(Instrument-Sensor) Measurement Accuracy
4.0%
Manufacturer
Dwyer Instruments
Features
Easy to read gage through undistorted plastic face permits viewing from far away
Patented design provides quick response to pressure changes means no delay in assessing critical situations
Durable and rugged housing and high-quality components combine to provide longservice life and minimized down-time
High accuracy option is twice as accurate as the standard Magnehelic® gage
