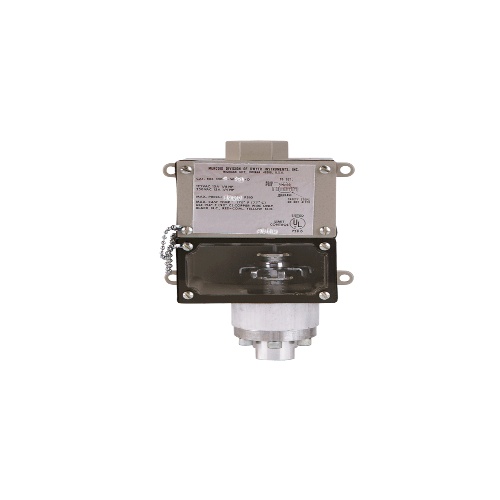

Dwyer 1006W-A1-D Weatherproof Diaphragm Operated Pressure Switch
Normally In Stock
Code: 567790
Dwyer 1006W-A1-D - Weatherproof pressure switch, adj. range 50-350 psig (3.5-24.1 bar), approx. deadband (fixed) 15 psig (1.0 bar).
Condition: New
Usually ships Same Day or Next Day$857.52
Sale Price
$714.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer 1006W-A1-D is a weatherproof diaphragm operated pressure switch. It has a temperature range of -30 to 170°F (-35 to 77°C) and an enclosure rating of NEMA 4X (IP66). With a pressure limit of 3000 psig (206.8 bar) and a SPDT snap switch, it is suitable for various applications. Its electrical rating is 15 A @ 125/250 VAC resistive, and it features an internal thumbwheel for set point adjustment. The switch can be mounted in any orientation and has a 1/4" female NPT process connection. The electrical connections are screw type and the conduit connection is 3/4" female NPT.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
Component
Pressure Switch
(Instrument-Sensor) Temperature Range
-30 - 170°F/-35 - 77°C
(Instrument-Sensor) Type
Diaphragm
Manufacturer
Dwyer Instruments
