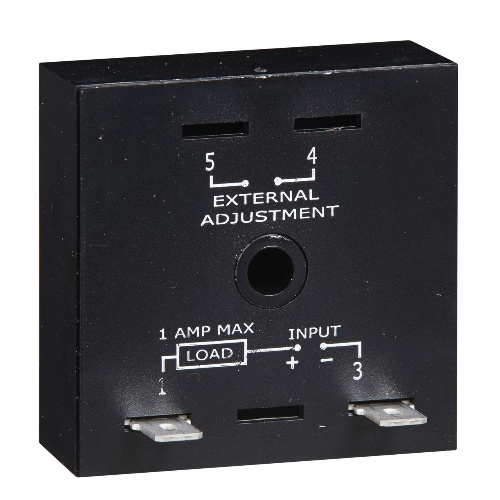

Littelfuse TS14120 is an encapsulated time delay relay with a 0.25 in. (6.35 mm) male quick connect terminal. It has an output load rating of 1A steady state and 10A inrush at 60°C. The input AC line frequency is 50/60 Hz with a tolerance of ±20%. It has a repeat accuracy of ±2% or 20ms. The insulation resistance is ≥100. The setpoint vs ambient temperature and operating voltage is ≤±10%. It has a time delay tolerance of ≤±10% and a dielectric breakdown of ≥2000V. The output voltage drop is ≅2.5V at 1A. The time delay type is analog and the recycle time is ≤16ms after timing and 0.1% of max. time delay or 75ms during timing. The minimum output holding current is 5mA.
