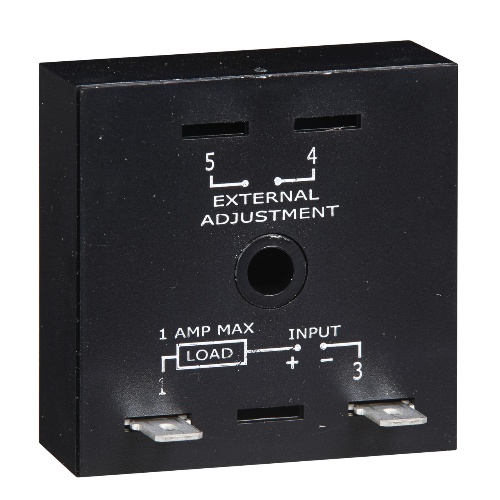

Littelfuse TS1415 is a compact and reliable solid-state time delay relay with a steady state output load rating of 1A and 10A inrush at 60°C. It features 0.25-inch male quick connect terminals for easy installation. With a wide input tolerance of ±20%, it operates at 50/60Hz AC line frequency. The relay is encapsulated and offers a repeat accuracy of ±2% or 20ms, whichever is greater. It has a high insulation resistance of ≥100 and can withstand a dielectric breakdown of ≥2000V. The output voltage drop is approximately 2.5V at 1A. The analog time delay type provides reliable timing control, with a recycle time of ≤16ms after timing and 0.1% of max time delay or 75ms during timing. The minimum output holding current is 5mA.
