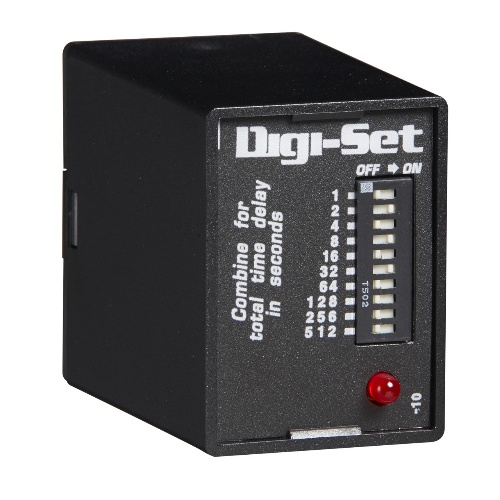

Littelfuse TDS120AL Time Delay Relay - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 566422
Littelfuse TDS120AL - Single Shot Timer Series - 120 Volt - Plug-in socket - 10 A resistive @ 120/240 V ac and 28 V dc; 1/3 hp @ 230 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$144.05
Sale Price
$120.04
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TDS120AL is an octal 8-pin plug-in time delay relay. It has an output load rating of 10A resistive at 120/240V AC and 28V DC. With a power consumption of ≤3.25W, it offers a repeat accuracy of ±0.1% or 20ms. The time delay type is digital, and it has a reset time of ≤50ms. It has a setting accuracy of ≤±2% or 50ms and LED indication during timing. It has a life of 1 x 10⁶ electrical cycles and 1 x 10⁷ mechanical cycles.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Sub Component
Single Shot
Relay Timing Range
1 - 1023 S
