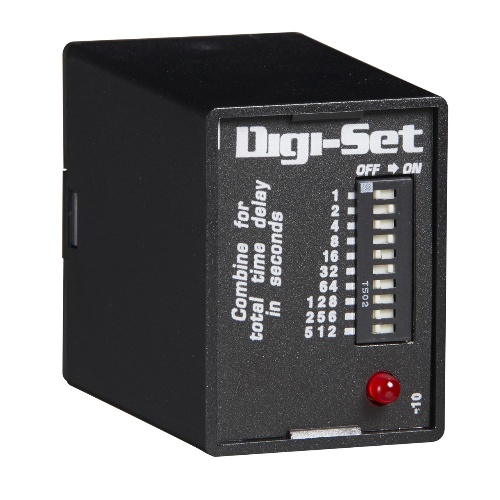

Littelfuse TDS12D Time Delay Relay - 12 Volt (DC), Double Throw, Double Pole
Normally In Stock
Code: 566424
Littelfuse TDS12D - Single Shot Timer Series - 12 Volt (DC) - Plug-in socket - 10 A resistive @ 120/240 V ac and 28 V dc; 1/3 hp @ 230 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$195.65
Sale Price
$163.04
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TDS12D is a versatile timer with an output load rating of 10A resistive at 120/240V AC and 28V DC, and 1/3hp at 230V AC. It features a Magnal 11-pin plug-in termination type and has an input tolerance of -15% to 20%. With a repeat accuracy of ±0.1% or 20ms, it ensures precise timing. The timer has a setpoint vs ambient temperature and operating voltage range of ≤±5% and consumes ≤3.25W of power. Its reset time is ≤50ms and it has a digital time delay type. With an electrical life of 1x10⁶ cycles and a mechanical life of 1x10⁷ cycles, this timer is highly durable. It has a recycle time of ≤150ms and an initiate time of ≤60ms. The DC units are reverse polarity protected and the setting accuracy is ≤±2% or 50ms. The timer provides clear indication with an LED that glows during timing and when the relay is energized.
Specifications
Relay Throws
Double Throw
Relay Poles
Double Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Relay Mounting
Plug-In Socket
Coil Voltage Rating
12 Volt (DC)
Sub Component
Single Shot
Relay Timing Range
1 - 1023 S
