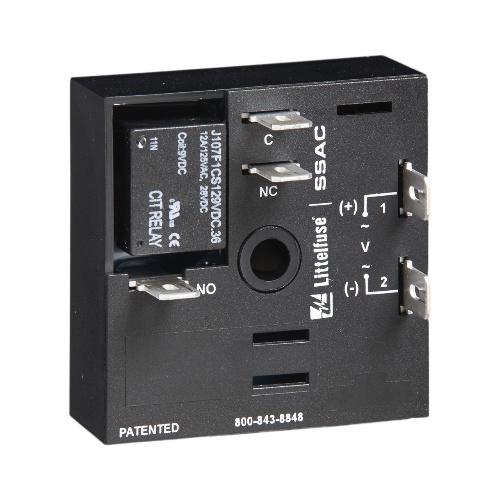

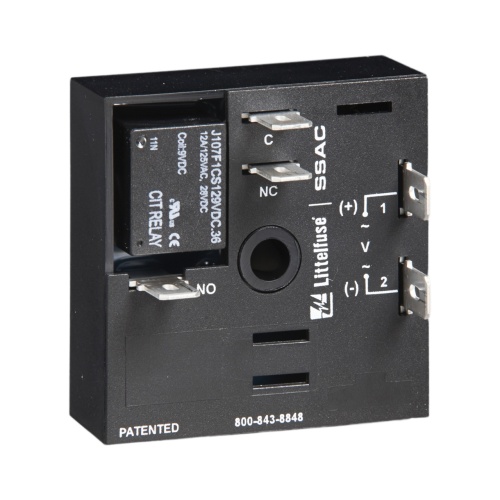

Littelfuse KRDM221 Time Delay Relay - 24 Volt, 24 Volt (DC), Double Throw, Single Pole
Normally In Stock
Code: 566238
Littelfuse KRDM221 - Delay On Make Timer Series - 24 Volt, 24 Volt (DC) - Surface mount with 1 #10 (M5 x 0.8) screw - 10 A resistive @ 125 V ac; 5 A resistive @ 230 V ac and 28 V dc; 1/4 hp @ 125 V ac; 1/4 hp @125 V ac @ 40°C (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$94.24
Sale Price
$78.53
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse KRDM221 is a compact and reliable solid-state relay. It has a load rating of 10 A resistive at 125 VAC and 5 A resistive at 230 VAC and 28 VDC. It features male quick connect terminals for easy installation and a wide input tolerance of -15% to 20%. With a repeat accuracy of ±0.5%, this encapsulated relay also offers excellent insulation resistance and low power consumption. It has a life expectancy of 1 x 10⁵ electrical cycles and 1 x 10⁷ mechanical cycles, making it a durable and long-lasting choice.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
24 Volt
Relay Mounting
Surface Mount
Coil Voltage Rating
24 Volt (DC)
Relay Timing Range
1 - 100 S
Sub Component
Delay On Make
Features
Microcontroller based
Compact, low cost design
Isolated, 10A, SPDT output contacts
Encapsulated
