Code: 566232

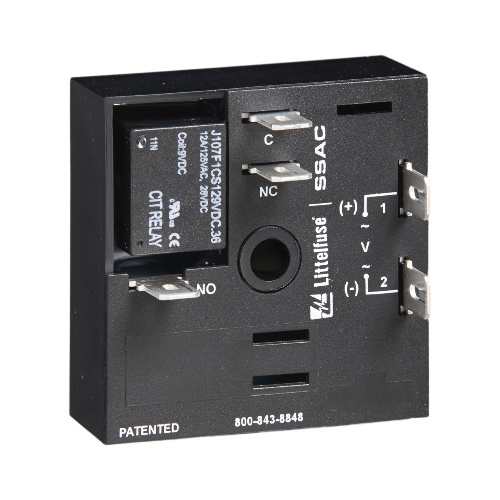

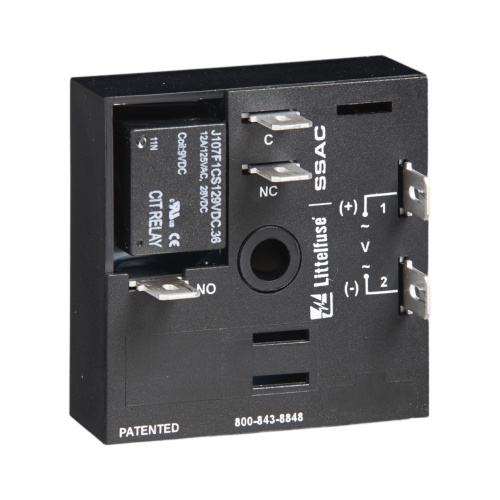

Littelfuse KRDM1130S Time Delay Relay - 12 Volt (DC), Double Throw, Single Pole
Normally In Stock
Littelfuse KRDM1130S - Delay On Make Timer Series - 12 Volt (DC) - Surface mount with 1 #10 (M5 x 0.8) screw - 10 A resistive @ 125 V ac; 5 A resistive @ 230 V ac and 28 V dc; 1/4 hp @ 125 V ac; 1/4 hp @125 V ac @ 40°C (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$100.85
Sale Price
$84.04
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse KRDM1130S is an encapsulated relay with a power rating of 10 A resistive @ 125 V ac and 5 A resistive @ 230 V ac and 28 V dc. It offers a repeat accuracy of ±0.5% or 20 ms and a time delay tolerance of ±5%. With a compact design and 0.25 in. male quick connect terminals, it provides reliable performance with a life expectancy of 1 x 10⁵ electrical cycles.
Specifications
Relay Throws
Double Throw
Coil Voltage Rating
12 VDC
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Relay Mounting
Surface Mount
Relay Timing Range
30 S
Sub Component
Delay On Make
Features
Microcontroller based
Compact, low cost design
Isolated, 10A, SPDT output contacts
Encapsulated
