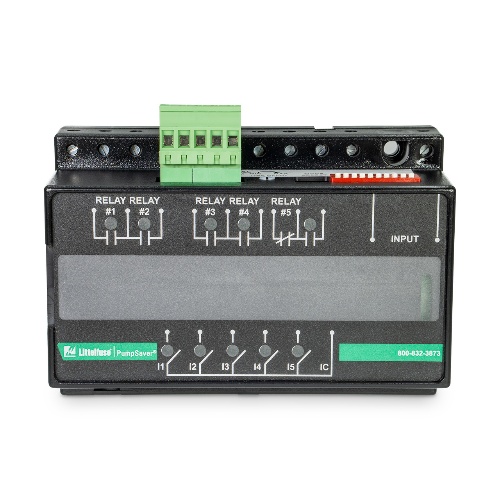

Littelfuse PC-105 5 Channel Pump-Control Switch/
Normally In Stock
Code: 566088
Littelfuse PC-105 - PC-105 Series – Five-Channel Pump Controller Series - 120 Volt - 35mm DIN rail or Surface Mount (#6 or #8 screws) - Pilot Duty: 480 VA @ 240 VAC B300; General Purpose: 7 A @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$686.05
Sale Price
$571.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse PC-105 is a versatile device with a torque termination type. It has a pilot duty output load rating of 480 VA at 240 Volts B300 and a general purpose rating of 7 A at 240 Volts. It supports wire sizes ranging from 12 to 20 AWG. With a 50/60 Hz input AC line frequency, it offers a maximum input power of 4 units. Its sense voltage is 5 Volts (DC) and it operates in sensor mode with a 1 relay latched / time delay output. The time delay option ranges from 2 to 255, making it suitable for lag pump delay.
Specifications
Relay Mounting
Din Rail
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
