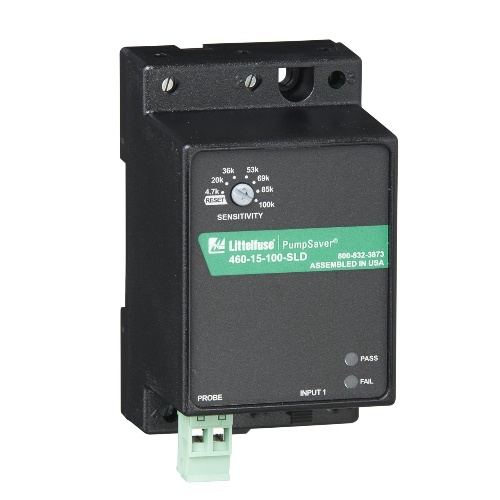

Littelfuse 460-15-100-SLD Liquid Level Control - 110-120 Volt, Single Throw, Double Pole
Normally In Stock
Code: 566041
Littelfuse 460-15-100-SLD - 460-15-100-SLD Series – Single-Channel Seal-Leak Detector Series - 110-120 Volt - 35mm DIN rail or Surface Mount (#6 or #8 screws) - Pilot Duty: 360 VA @ 240 VAC B300; General Purpose: 8 A @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$161.90
Sale Price
$134.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse 460-15-100-SLD is a versatile product with a Pilot Duty of 360 VA @ 240 Volts B300 or General Purpose of 8 A @ 240 Volts. It features Torque termination, accommodating stranded or solid 12 - 20 AWG wires. Able to operate at 50 or 60 Hz frequency, it has an IP20 protection class, NEMA 1 rating, and can withstand 10 - 95% non-condensing humidity. With a maximum input power of 2 and a 5 Volts (DC) continuous sense voltage, it provides accurate and reliable performance with a sensitivity range of 4.7 - 100 Ohms.
Specifications
Relay Mounting
Din Rail
Relay Throws
Single Throw
Relay Poles
Double Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
110-120 Volt
